Dr. Grunge...The Dirt on Dirt...(Scenic Work and Sundries)

I would like to thank Robert Burns for his motivation to get this thread to print. Thanks Bob.

Disclaimer: Uh, oh...the fine print already!...The following information is NOT how to do things...but how I do things. We all have our own styles of modeling based on our techniques, materials, skill level, etc. Example of this is how we can see a completed model and it becomes obvious who the modeler behind the model is! This is not necessarily a bad thing as long as we are happy with the results. However, should we find ourselves less than thrilled with the outcome, seeking additional resources comes into play. No matter your level of modeling we all can improve and tweak our processes. This is what I hope to accomplish here, to provide an additional resource. If I mention 25 "things" and someone comes away with one that helps them out...mission accomplished! On with the dirt on dirt...
«1

Comments

  • The format for this discussion will be the outside work on my current build, Scotia Supply. This accomplishes two major goals; firstly, actual scenic and scene construction is presented and...secondly, I get some needed motivation to get some work done on my build! We will forego talking about the research and planning that goes into our build and how it relates to our scenic work and scene construction. I will start with the diorama base and how I proceed from there.

    With most any project the most important step is in the preparation. I use the green 3/4 inch dense foam board epoxied to 3/4 inch particle board (MDF I think it's called?). The MDF is more resistant to warping than plywood. The 3/4 inch foam board provides an ideal surface for scene construction as you can vary the topography easily by cutting, sanding, poking holes, etc. and is paintable and does not absorb moisture.

    If you remember one thing regarding scene construction and scenic work it would be...
    LAYERING and TEXTURE...well two things I guess! This concept cannot be over emphasized. The creation of layering in your scene construction and the use of multiple textures is what creates realism. Moving on...after much pondering over the previous.

    My first step is to prepare the diorama base for the first, and initial, layer of "dirt". I use real dirt exclusively. Most would agree the only thing that looks most like dirt is dirt! Somewhat intuitive but worth mentioning. There are other products in use, and modelers have used it to good effect, but I stick with what I like and that's good ole mother earth. Since I have so much verbiage here I now proceed with steps...

    Step 1.

    The first dirt layer I apply is a very fine layer that has been sieved to a very fine particle size, almost powdery. This base layer is the first in a series to build the layer effect. It also serves as a good base for pathways and road surfaces...more on that latter.
    So I have my supply of sieved, first layer, dirt.

    Step 2.

    I then paint my diorama base with a flat latex paint, what color?...uhh...the color of dirt!
    The first layer of dirt can be applied in one of two ways: Firstly, it can be applied directly over the wet paint. Secondly, it can be applied over the foam base after the paint has dried by applying a layer of diluted white glue with an old paint brush. I tend to use the latter as I think the dirt adheres a bit better with the glue. Once the paint/glue is dry the excess dirt can be removed. Now it gets interesting...Step 3 coming up...

  • Gonna be a real treat to look over your shoulder. Your scenery is fabulous and I am eager to learn the techniques you employ. Like the original class tutorial from Karl this is information every modeler should possess!
  • I had some paint mixed up once and when I picked it up I told the guy "it has a nice dirt look to it". I think he was offended.
  • edited May 2020
    Thanks much Brett...

    A shout out to Brett here regarding this thread. Brett addresses the issue of layering and texture most eloquently in his build manuals however, his main focus is on the structure build of his kits and the many beautiful scenes created by the plethora of castings and details provided in the kits.. It would be impractical to try and comprehensively address the many scenic techniques and applications. There are as many methods as there are modelers! The SWSM Manuals have all the necessary ingredients to create a beautiful diorama by following the advise and methods contained therein. Once again, this is just how I do it...
  • edited May 2020
    No doubt Bryan, how about the guy at Lowes when I actually brought in a small jar of the actual dirt and said "match this as best you can" Lol....
  • Looking forward to this Ken, your scenery and scenes are always beautiful to look at and admire. Its going to be a real education to watch how you pull it all together.
    I'm ready to learn a few new things and add them to my techniques.
    Thanks for sharing your skills with us all.
  • edited May 2020
    I know...pictures, pictures...

    Thanks for the encouragement Karl. You have paved the way for this thread and I remember how I struggled to get roads to look right until pouring over your techniques and how you and Brett preached about layering and texture.

    Step 3.

    The area I'm starting with is the north end of Scotia. Don't be surprised that in an earlier post I may have called it the east side!...Lol.

    IMG_7972

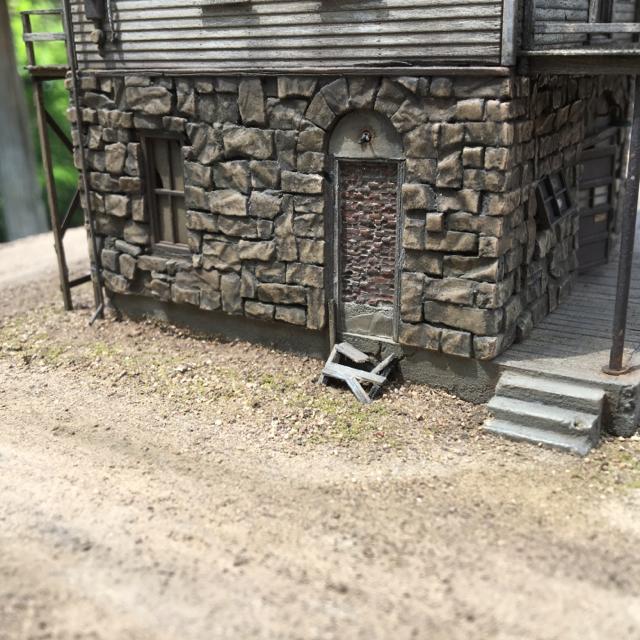

    Prior to knowing I was going to do this thread, I had begun the outside scenic work. Step 1 has been done as well as Step 2. In this scene I roughed in a dilapidated stairway to match the old bricked up doorway. I also spread my second application of ground work or aggregate. This is the beginning of the layering process. You will notice that right up against the foundation and out about an inch the material is more coarse then in the foreground. There is also a hint of a path from concrete steps out to the side drive.
